EX2-1055 Computer Liquid Cooling System

暂无价格
收藏
产品编号 Part No. EX2-1055
  • 产品说明
  • 产品参数

EX2-1055 is an ambient liquid cooling system designed with features for computer cooling. This model contains a triple x 120mm fan aluminum radiator, providing roughly 900W of cooling with a 25°C ambient delta. Just add tubing, fittings, coolant, and connect to your cold plate(s).

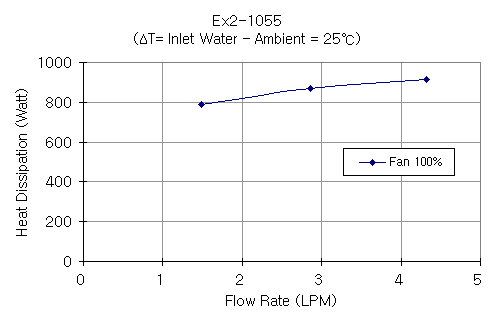

  • Cooling capacity: 900W (3071BTU/hr) with 25°C liquid-ambient delta @ 4.5LPM
  • Radiator fan speed: automatic based on temperature, or 10 manual levels

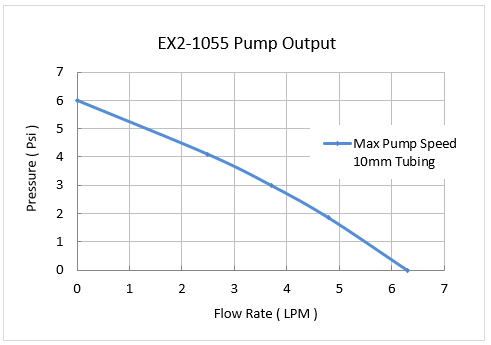

  • Pump: 10 manual levels, up to 4.5LPM (1.2GPM)
  • Adjust audio alarm based on 3 included temperature sensors
  • Relay trigger can be configured as NO or NC and adjusted based on temperature
  • Power input: 12VDC (via computer Molex plug), or 110/220VAC with separate adapter
  • Reservoir capacity: 142mL (4.8 fl oz)
  • G 1/4 BSPP threads on back for fittings


Liquid Coolants

Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.

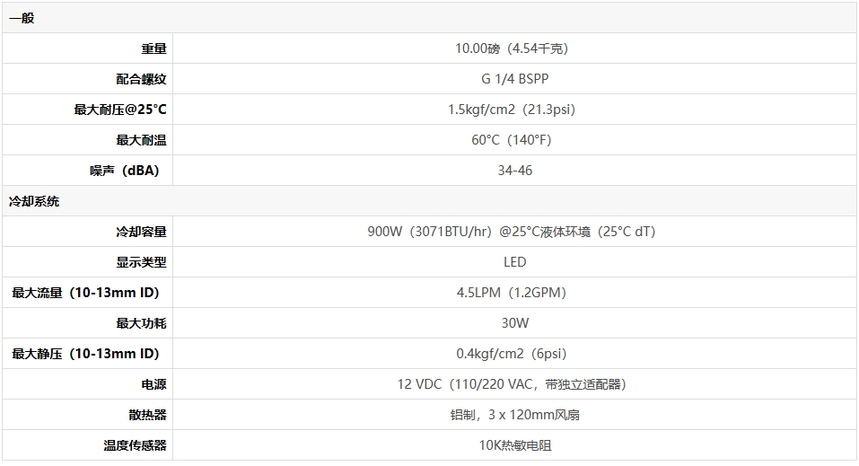

General
Weight10.00 lb (4.54 kg)
Fitting ThreadG 1/4 BSPP
Max Pressure @ 25°C1.5kgf/cm2 (21.3psi)
Max Temperature60°C (140°F)
Noise (dBA)34-46
Cooling Systems
Cooling Capacity900W (3071BTU/hr) @ 25°C liquid-ambient (25°C dT)
Display TypeLED
Flow Rate4.5LPM (1.2GPM)
Max Power Consumption30W
Power Source12 VDC (110/220 VAC with Separate Adapter)
RadiatorAluminum, 3 x 120mm fans
Temperature Sensors10K Thermistors
Dimensions
Diagrams / Models(See Files Tab for Diagrams and 3D Models)





Liquid Coolants

Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.
