Dual VID Connector, *Black* Adjustable 2-3 Slot Spacing

暂无价格
收藏
产品编号 CNT-VDA34-BK
  • 产品说明
  • 产品参数

Adjustable direct connection fitting for supported Koolance VID coolers in series or parallel. CNT-VDA34-BK is for SLI or CrossFire setups that span four to five card slots (two to three in between are bypassed). Koolance VID water blocks occupy the same slot as the video card. See this page for more details.

G 1/4 BSPP threading, made of brass with compression fittings and gaskets. Will work with any hose diameter going in and out of the Koolance video coolers. To adjust, loosen the threaded center nut, slide apart, and re-tighten. Do not adjust sliding fittings beyond the marked safety line.

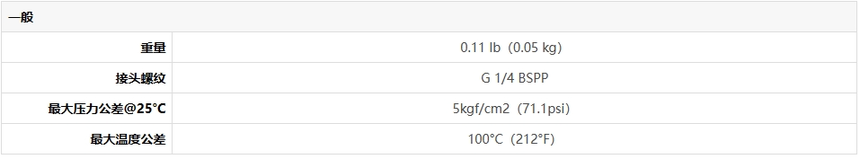

General
Weight0.11 lb (0.05 kg)
Fitting ThreadG 1/4 BSPP
Max Pressure @ 25°C5kgf/cm2 (71.1psi)
Max Temperature100°C (212°F)
Dimensions
Diagrams / Models(See Files Tab for Diagrams and 3D Models)

cnt-vda34.step.zip

cnt-vda34_d1.pdf
