ALH-2000 Liquid Cooling and Heating System

暂无价格
收藏
产品编号 Part No. ALH-2000
  • 产品说明
  • 产品参数


(NOTE: Rev.1.1 of this product has changed the rear fitting threads from G 1/4 BSPP to NPT 1/4in.)

ALH-2000 is an ambient liquid cooling system with heating capabilities to maintain a steady temperature for a non-constant heat load, or for a cold plate/sample which must stay near or above the ambient room temperature.

ALH-2000 monitors coolant flow rate, temperature, and reservoir level. It contains a large stainless steel coolant reservoir with an internal coolant pump outputting up to 8.8LPM (2.3GPM). A USB port allows control and logging of most features using the Koolance System Monitor application.

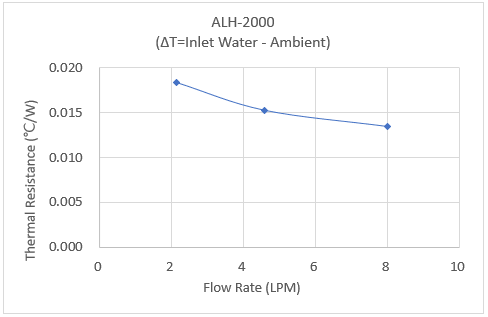

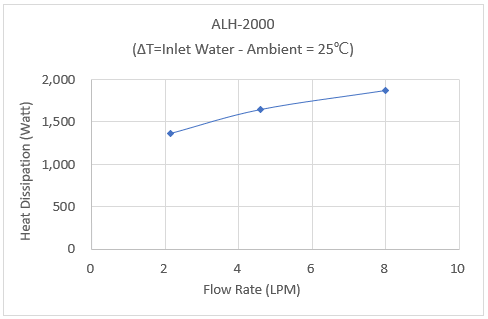

  • Cooling capacity: 2000W (6824BTU/hr) with 25°C liquid-ambient delta @ 8.8LPM
  • Heating capacity: 1000W
  • Temperature in °C/°F with set-point based on: liquid (-30 to 90°C), or one of two optional K-type thermocouples (-20 to 120°C)

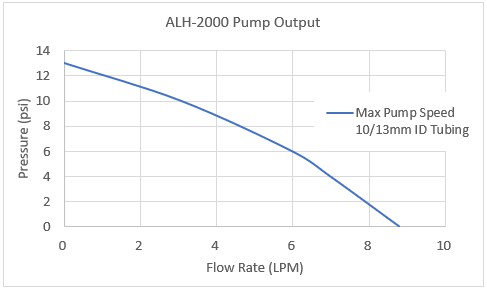

  • Pump: 10 manual levels, up to 8.8LPM (2.3GPM)
  • Select only values you want displayed on the front 2-line OLED display (fixed or rotating)
  • Show coolant flow rate in LPM/GPM
  • Show pump impeller speed in RPM
  • Enable audio alarm based on: temperature, flow rate, and/or reservoir coolant level
  • Enable relay trigger (NO or NC) based on: temperature, flow rate, and/or reservoir coolant level
  • Power input: 110/220VAC, 50-60Hz
  • Max power consumption: 85W when cooling, 1040W when heating
  • Reservoir capacity: 10L (338 fl oz)
  • NPT 1/4in threads on back for fittings


Liquid Coolants

Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.

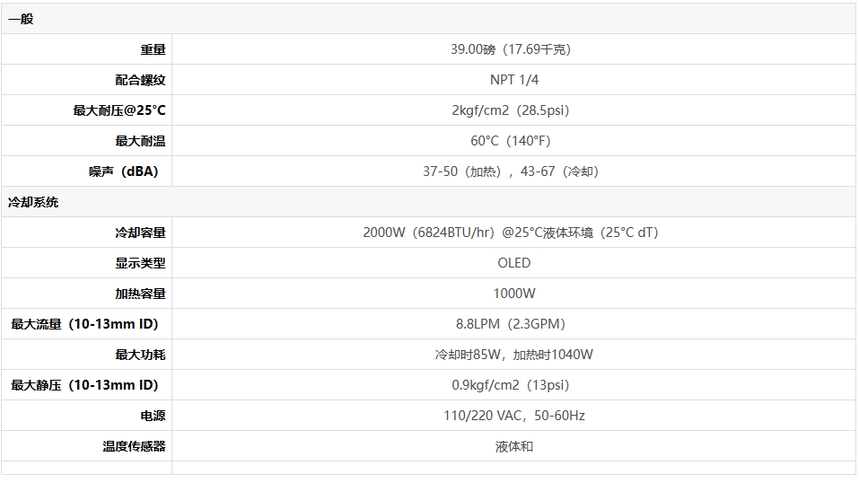

General
Weight39.00 lb (17.69 kg)
Fitting ThreadNPT 1/4
Max Pressure @ 25°C2kgf/cm2 (28.5psi)
Max Temperature60°C (140°F)
Noise (dBA)37-50 (Heating), 43-67 (Cooling)
Cooling Systems
Cooling Capacity2000W (6824BTU/hr) @ 25°C liquid-ambient (25°C dT)
Display TypeOLED
Flow Rate8.8LPM (2.3GPM)
Heating Capacity1000W
Max Power Consumption85W when cooling, 1040W when heating
Power Source110/220 VAC, 50-60Hz
Temperature SensorsLiquid & Two K-Type Thermocouples (optional)
Temperature Stability+/-0.5oC (with heat load) up to +/-1oC (without heat load)
Dimensions
Diagrams / Models(See Files Tab for Diagrams and 3D Models)





Liquid Coolants

Koolance's product warranty does not cover the use of 3rd-party coolants, coolant additives, or corrosion. Koolance LIQ-702 or LIQ-705 coolants are strongly recommended to help avoid issues with mixed metals or biological growth. Additionally, do not use aluminum with bare (unplated) copper or bare (unplated) brass in the same system. Do not use silver with nickel in the same system.
